You ever stand next to your car with a brand-new tow-ball bike rack, all proud—until you try to mount it and realize... nope, doesn’t fit. Yeah. That was me not too long ago. I figured, how tricky could it be? Just bolt it on and go, right? Turns out, tow-ball bike rack sizing isn’t as straightforward as I thought.

So let’s break it down. This guide’s all about helping you avoid the trial-and-error route I took. We’re talking real stuff here—what actually matters when sizing a rack, and what you can skip. If you’ve got bikes and a car, and you want them to get along, you’re in the right place.

What Does “Tow-Ball Bike Rack Sizing” Really Mean?

At first, I thought sizing just meant how many bikes the rack could hold. Two bikes? Three? Four? Easy choice. But that’s only half the story.

When people say “rack size,” they could be talking about a bunch of things—like how wide the rack is, how far it sticks out, or how much space there is between trays. Yeah, it’s not just about numbers. I bought a 3-bike rack once thinking, "That'll fit my two MTBs and a road bike no problem!" Nope. The handlebars were elbowing each other like kids in the backseat.

Here’s the catch: rack size isn’t just about how many bikes. It’s also about how well the rack fits your car, and how well your bikes fit on the rack. Some racks look compact but can’t clear the bumper. Others are wide enough for four bikes but only if they’re the same size and shape—which mine weren’t.

And don’t even get me started on “universal fit.” Sounds great on paper, but not every rack fits every setup. Learned that the hard way.

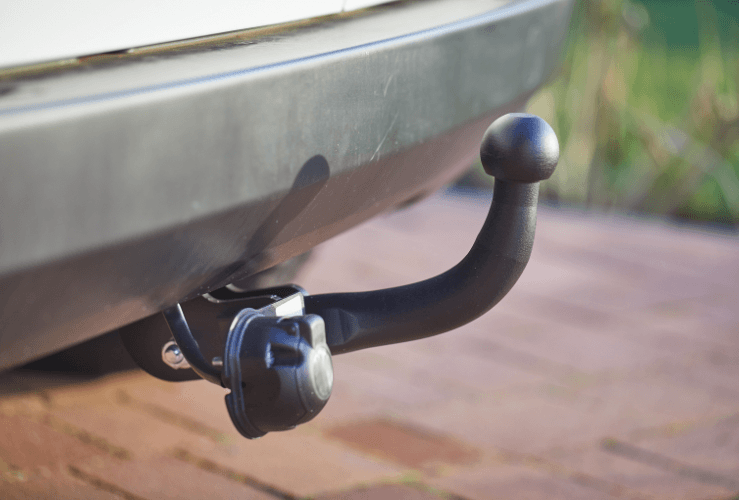

Types of Tow-Ball Mounts and Their Impact on Rack Size

Let’s talk tow balls—because this part tripped me up fast. Before I bought my first rack, I didn’t even know there were different types. I assumed all tow balls were just… balls. I was wrong.

Common Tow-Ball Types

Here’s a breakdown of the main types I came across:

I had a detachable tow ball, which looked clean when not in use. But the first rack I bought didn’t grip tight enough. It wobbled every time I hit a pothole. Not cool.

Another thing—some tow balls sit too close to the bumper. Even if the rack fits the ball, it might tilt into your bumper or tailgate when you try to open it. That’s not something you want to find out after installation, trust me.

Also, pay attention to the angle. Some EU-style balls tilt slightly, and if the rack isn’t designed to sit level, your bikes will lean—and not in a good way.

Key Dimensions to Consider Before Buying

Okay, now we’re getting into the nitty-gritty. The rack might look good online, but until you check a few key measurements, it’s a gamble. And I don’t like gambling with my carbon frame.

What to Measure (And Why It Matters)

Here’s what I always measure now before committing to a rack:

1. Tow Ball to Bumper Clearance

Some racks are long. Some cars have bumpers that stick out. I always leave at least 12–15 cm of space between the tow ball and bumper. That way, the rack can tilt back without smashing into anything.

2. Tray Width and Spacing

Trays that are too narrow? Nope. Trays too close together? Hello, tangled handlebars. Fat tire bikes need wider trays, road bikes need a tight grip, and kids’ bikes need flexibility.

Here’s a rough guide I follow:

Handlebar width matters too. If you're loading three MTBs with 780mm bars? You better hope those trays are staggered or adjustable. If not, the handlebars will fight for space—and nobody wins.

3. Tilt Angle

This one gets overlooked all the time. I like being able to open my trunk without taking the bikes off. If the tilt range is too small, you’re stuck. I look for racks that offer at least 30 degrees of tilt.

Sizing Based on Bike Types (Not All Bikes Are Equal!)

This one surprised me the most. I figured a rack that fits “up to four bikes” meant it’d hold four any bikes. Wrong again.

Matching Rack to Bike Type

Let’s go bike by bike. They’re not all built the same, and racks aren’t either.

E-Bikes

Heavy beasts. Mine weighs 28 kg with the battery in. Some racks cap out at 60 kg total—so two e-bikes is the limit. And not all trays are long enough for the wheelbase. If you’re hauling e-MTBs, double-check the specs.

Also, lifting an e-bike onto a high rack? Not fun. Look for a low-mount platform or use a ramp. Your back will thank you.

Road Bikes

No big issues here—unless your rack doesn’t grip thin wheels. I’ve seen bikes slip sideways on racks designed for mountain tires. If you’ve got 25mm tires, make sure the tray clamps down tight.

Also, keep a strap handy. The lighter the bike, the more likely it is to bounce.

Mountain Bikes

Wider bars, thicker frames, and longer wheelbases. They’re not hard to fit—if you have enough space between trays. I once loaded two MTBs too close together. Took me twenty minutes to adjust the handlebars so they weren’t crashing into each other.

Fat Bikes

If you’ve got tires wider than 4 inches, check the tray width before you even bother. Some racks need a fat tire kit, and some just won’t work at all. Measure your tire width—don’t eyeball it.

Kids’ Bikes

These are tricky. Tiny wheels and weird geometry can mess with how the tray clamps. I use an extra strap to keep my kid’s 16-inch bike steady. Some racks are adjustable, but not all. Make sure the arms go low enough to hold small frames.

Conclusion

Getting the right tow-ball bike rack isn’t just about counting how many bikes you’ve got. It’s about your car, your tow ball, your bike types, and how it all fits together.

Measure everything—bumper clearance, tray width, wheelbase, weight. I didn’t the first time, and I regretted it fast. But now? Loading the bikes is a breeze. No wobble, no stress, no drama.

Just a smooth ride, every time.
